Customized Dimension 25KN 4707Q American Brake Shoe for Heavy Duty Vehicles

Product Details

Place of Origin: China

Brand Name: BYF

Certification: FMVSS 121

Model Number: 4707Q

Payment & Shipping Terms

Minimum Order Quantity: 200

Price: 20.00-25.00 USD / Set

Packaging Details: By The Requirement Of Customer

Delivery Time: 15 days

Payment Terms: T/T, L/C, Western Union, D/P

Supply Ability: 500K pcs /Month

Get Best Price
Product Details
High Light:

Q235 American Type Brake Shoe

,

OEM American Type Brake Shoe

,

Brake Block American Type 25KN

Material:
Q235/Q345
Dimension:
16.5''×7'' ( 419×177.8mm )
Welding Intersity:
17-25 KN
Brake Liner Grade:
23K FF
Packing:
By Pallet Or Plywood Box
Weight:
18 KG
OEM Supply:
Custom Design And Service Are Accepted
Certification:
FMVSS 121
Material:
Q235/Q345
Dimension:
16.5''×7'' ( 419×177.8mm )
Welding Intersity:
17-25 KN
Brake Liner Grade:
23K FF
Packing:
By Pallet Or Plywood Box
Weight:
18 KG
OEM Supply:
Custom Design And Service Are Accepted
Certification:
FMVSS 121
Product Description

25KN 4707Q American Brake Shoe Plus Meritor Air Brake Shoes



Customized Dimension 25KN 4707Q American Brake Shoe for Heavy Duty Vehicles



What's advantages of our brake shoe?

1. OEM qualtity control to make sure that our products can give you 18 Month warranty whatever any different road the trailer driving.

2. Pretty good matched with the lining, no need any more adjustment. Because it's surface flatness less than 0.03mm.

3. Strong welding strength. American standard from 17-25KN. The maximum welding intensity of ours reach to 29KN.

    Because we use constant temperature cooling system while quenching.

4. Our engineers got more than 20 years experience in doing this industry. We can slove all problem you met before.

5. Strictly quality control. Any complain from you will be quickly treated, and the solution would be given to you inside of 3 days.





Product Details





Type American Type Brake Shoe
OEM NO. XK3124707QP
Dimension 16.5''×7'' ( 419×177.8mm )
Material Q235/Q345
Surface Treatment E-Coating≥240 Hours Salty Spray Test
Welding Intersity 17-25 KN
Color Black Or As Required
Brake Liner Grade 23K FF
Weight 7.7 KG
BYF Drawing BYF-Z-15
Certification IATF 16949:2016
OEM Supply Custom Design And Service Are Accepted
Packing By Pallet Or Plywood Box
Loading Port Ningbo Port Or As Required

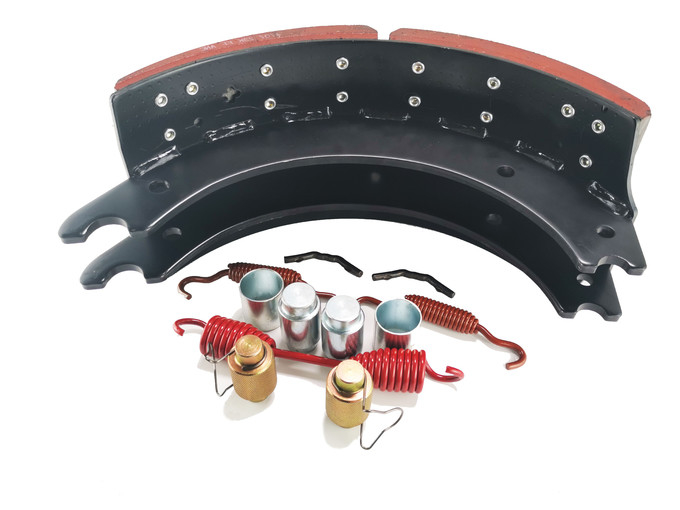

 Customized Dimension 25KN 4707Q American Brake Shoe for Heavy Duty Vehicles 0

Customized Dimension 25KN 4707Q American Brake Shoe for Heavy Duty Vehicles 1

Customized Dimension 25KN 4707Q American Brake Shoe for Heavy Duty Vehicles 2



Other Models Are Also Available

FMSI NO.   Description OEM NO.
4720QP E-10854 MERITOR Q-Plus series 16 1/2"X5" MERITOR A-3222-Z-2288 Available
4707 E-5503 MERITORQ-Plus series 16 1/2"X7" MERITOR A-3222-D-2006 Available
4718 E-10850 MERITORQ-Plus series 16 1/2"X8" MERITOR A-3222-J-2272 Available
4711 E-10844 MERITOR Q-Plus series 16 1/2"X8 5/8" MERITOR A-3222-K-2169 Available



Model OEM NO.   Model OEM NO.
BPW180 New 05.091.46.17.0   4551 Supply to FUWA 16T
BPW200 New 05.091.27.83.0   4551P MERITOR A-3222-L-1572
BPW220 New 05.091.28.29.0   4551Q MERITOR A-3222-T-1346
BPW360 New 05.091.19.22.1   4702QP MERITOR A-3222-M-2223
BPW3020 New 05.091.14.80.0   4703QP MERITOR A3222-D-2110
BPW180 Old 05.091.26.64.2   4704QP MERITOR A3222-E-2111
BPW200 Old 05.091.27.54.2   4705QP MERITOR A3222-F-2112
BPW220 Old 05.091.28.11.2   4706QP MERITOR A-3222-G-2113
BPW360 Old 05.091.19.07.0   4707QP 152.24.724 A19-3222-D-2006
BPW3020 Old 05.091.14.46.0   4709ES-2 EATON 819707 R4709G2
SAF180 New 2.056.0120.00   4710QP MERITOR A-3222-A-2159
SAF200 New 2.056.0121.00   4711QP MERITOR A-3222-K-2169
SAF180 Old 3.054.0052.00   4715QP MERITOR A-3222-P-2200
SAF200 Old 3.054.0053.00   4717ES R700018
SAF-SK9 3.054.0120.00   4718QP MERITOR A-3222-J-2272
SAF-SK11 3.054.0120.00   4719ES-2 EATON 819705
BENZ-140 620.420.01.19   4720QP MERITOR A-3222-Z-2288
BENZ-160 393.420.07.19   4725ES-2 EATON 819706
BENZ-160 620.420.00.19   4726ES-2 EATON 819708
BENZ-180 389.420.61.19   4729ES-2 EATON 974584
BENZ-180 620.420.03.19   4223E EATON 805677
BENZ-220 305.420.07.19   4524P MERITOR A-3722-D-82
BENZ-220 620.420.05.19   4524Q MERITOR A-3222-E-1383
New 125-R/L 3095193   4524QR MERITOR A-3222-J-1440
New 150-R/L 3095194   4536 DANA M12WS122X
New 175-R/L 3095195   4591 DANA M12WS127X
New 200-R/L 3095196   4591PQ R700031
New 225-R/L 3095197   4591SF R704591
Old 125-R/L 3090073   4591SA EATON 820173
Old 150-R/L 3090074   4592A MERITOR A1-3722-J-686
Old 175-R/L 3090075   4592 DANA M12WS148X
Old 200-R/L 3090076   4607-Cast DANA M12WS102
Old 225-R/L 3090077   4649 FRUEHAUF ACD-2227-1
MAN 160 81502016098   4644Q MERITOR A-3222-B-1510
MAN 180 81502016099   4670Q MERITOR A-3222-S-1527
MAN 220 81502016114   4674E EATON 805682
4544-Cast DANA M12WS108   4692 R700007
4514P MERITOR A-3722-L-64   4311E EATON 805442 EATON 805460
4514Q MERITOR A-3222-C-1381   4317E R700023
4514QR MERITOR A-3222-V-1348   1443E EATON 807685 R700017
4515E 150.25.412   1307T MERITOR A-3222-K-1103
4515P MERITOR A-3722-N-66   1308T MERITOR A-3222-F-1072
4515Q 152.05.533 A91-3222-S-1293   1308Q MERITOR A-3222-F-1982
4515 Supply to FUWA 13T   1308E EATON 1005840
4516 152.06.227   5030-178 SMB178
4515XEM FRUEHAUF ACF-3379-1   07-005 SMB
4551 XEM-L FRUEHAUF ACF-3380-1   5030-203 SMB203
4551 XEM-R FRUEHAUF ACF-3380-2   61540
4551E 152.00.007   T8235
4551F 152.05.191   ……




Quality Inspection Process

American Type Lined Brake Shoe Kit 4707QP XK20014707QP 6 American Type Lined Brake Shoe Kit 4707QP XK20014707QP 7
American Type Lined Brake Shoe Kit 4707QP XK20014707QP 8 American Type Lined Brake Shoe Kit 4707QP XK20014707QP 9



Why choose us

Professional service

Rich experienced technicians and Research&Development team

Provide professional solutions timely

Competitive price

Price with higher cost performance will be offered on the base of good quality

Good quality

Advanced equipment, experienced technicians and strict QC system ensure high quality products

Fast delivery

Strict production cycle control with advanced equipment

Transportation time guarantee with professional export shipping



American Type Lined Brake Shoe Kit 4707QP XK20014707QP 10 American Type Lined Brake Shoe Kit 4707QP XK20014707QP 11

Whole body of the pallet will be packaged by PE film in order to avoiding water go inside, and prevent pallet crash with each other.

American Type Lined Brake Shoe Kit 4707QP XK20014707QP 12 American Type Lined Brake Shoe Kit 4707QP XK20014707QP 13
