Product Details
Place of Origin: China
Brand Name: BYF
Certification: ISO9001:2015
Model Number: American Type 13T
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: By The Requirement Of Customer
Delivery Time: 15 Days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Cash
Supply Ability: 200000 Piece/Pieces Per Month
OEM NO.: |
American Type 13T |
Color: |
As Request |
Material: |
20Mn2 |
Apply To: |
FUWA |
Weight: |
365 KG |
Brake: |
420*220mm |
Axle Beam: |
150*150*16mm |
Bearing: |
HM518445 |
Stud: |
10-M22*1.5 |
Track: |
1840mm |
Total Length: |
2185mm |
Slack Adjuster: |
3 Hole 37 Teeth |
Loading Port: |
Qingdao Port Or As Required |
OEM NO.: |
American Type 13T |
Color: |
As Request |
Material: |
20Mn2 |
Apply To: |
FUWA |
Weight: |
365 KG |
Brake: |
420*220mm |
Axle Beam: |
150*150*16mm |
Bearing: |
HM518445 |
Stud: |
10-M22*1.5 |
Track: |
1840mm |
Total Length: |
2185mm |
Slack Adjuster: |
3 Hole 37 Teeth |
Loading Port: |
Qingdao Port Or As Required |

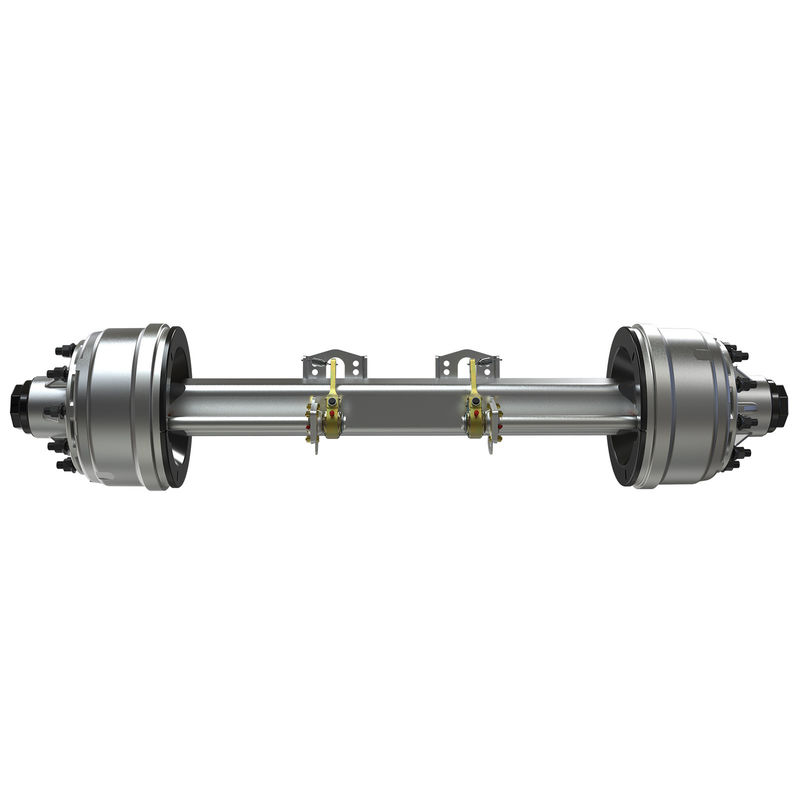

Heavy Duty Truck 13T Trailer Spare Part Square Or Round Axles
Technical Requirements
1. All welding points are free of any spatter and welding slag, all welding seams are welded by CO2 protection welding, and the welding seams are beautiful and firm.
2. The product is sprayed with four coats of paint, that is, two coats of primer and intermediate top coat and top coat. The thickness of the paint film is not less than 0.08mm. Use high-quality polyurethane top coat and varnish. Need to be dried.
3. Mainly do not bump into during transportation.
4. Standard assembly, no brutal operation is allowed.
5. The torque of the connecting bolt shall be implemented according to the GB/T 16938-2008 standard.
| OEM NO. | American Type 13T |
| Color | As Request |
| Material | 20Mn2 |
| Apply to | FUWA |
| Type | Semi-Trailer |
| Weight | 365 KG |
| Brake | 420*220mm |
| Track | 1840mm |
| Axle Beam | 150*150 |
| Stud | 10-M22*1.5 |
| Bearing | HM518445 |
| Total Length | 2185mm |
| Loading Port | Qingdao Port Or As Required |
Product Details
Drawing Details
Axle Structure
BYF American Type Axle Drum Series Specification
| Max. Capacity | Track | Brake | Centre Distance Of Spring Seat | Axle Beam | Wheel Fixing | Total Length | ||
| Stud | P.C.D | Hole Diameter | ||||||
| 12 | 1820 | 420*180 | ≥950 | O127 | 10*M22*1.5 | 285.75 | 221 | ~2165 |
| 12 | 1820 | 420*180 | ≥950 | O127 | 10*M22*1.5 | 335 | 281 | ~2165 |
| 13 | 1840 | 420*180 | ≥930 | 150*150 | 10*M22*1.5 | 285.75 | 221 | ~2185 |
| 13 | 1840 | 420*180 | ≥930 | 150*150 | 10*M22*1.5 | 335 | 281 | ~2185 |
| 15 | 1850 | 420*180 | ≥940 | O127 | 10*M22*1.5 | 335 | 281 | ~2185 |
| 15 | 1850 | 420*180 | ≥940 | 150*150 | 10*M22*1.5 | 335 | 281 | ~2185 |
| 16 | 1850 | 420*220 | ≥940 | O127 | 10*M22*1.5 | 335 | 281 | ~2185 |
| 16 | 1850 | 420*220 | ≥940 | 150*150 | 10*M22*1.5 | 335 | 281 | ~2205 |
Factory Production
Packing & Delivery
1. 58PCS/20"Container
2. 500*500*2200MM
Excellent Pre-sale Service
1. According to your specification request, provide the best price for you.
2. After you confirmed the specification and price, our engineers will draw a Official Drawing for you confirm.
3. After our Finance Department confirmed your deposit or Irrevocable L/C, we will start manufacture the products for you.
4. Update the progress of production to you in time, to help you know your order details progress.
5. After the product manufacture finished, if you need, we will arrange shipping for you.
With our professional skill, you just need to pick your products up at the destination place, and don’t need to worry about the shipping at all.
FAQ
A: We are professional factory with 20 years manufacturing history
A: Generally it is 3-7 days for the samples, 25-35 days for 1-3 container. it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: T/T in advance ,30% deposit, balance before shippment.
If you have another question, pls feel free to contact us as below.
