Product Details
Place of Origin: China
Brand Name: BYF
Certification: ISO9001:2015
Model Number: T1624DP-DISC
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: By The Requirement Of Customer
Delivery Time: 15 Days
Payment Terms: L/C, T/T, Western Union, , Cash
Supply Ability: 10000 Piece/Pieces Per Month
Brake Chamber Type: |
30 |
OEM NO: |
BS9304 |
BYF NO.: |
T1624WG |
Material: |
Aluminum Alloy |
Stroke: |
60mm |
Air Inlet Thread: |
M16×1.5 |
Weight: |
8.3 KG |
Application: |
Schmitz Mercedes |
Color: |
Silver |
Bolt Center: |
76.2±0.3mm |
Surface Treatment: |
Electrophoretic Paint/Zinc Plating |
Bolt Thread: |
M16*1.5 |
Push Rod Length: |
265±5mm |
Piston Type: |
Single |
Clamp Angle: |
45 Degrees |
Type: |
Spring Brake |
Port Angle: |
90 Degrees |
Loading Port: |
Ningbo Port Or As Requested |
Working Pressure: |
800-1200kPa |
Stroke Length: |
60mm |
Sealing Material: |
Nitrile Rubber |
Oem No: |
4231061160 |
Brake Chamber Type: |
30 |
OEM NO: |
BS9304 |
BYF NO.: |
T1624WG |
Material: |
Aluminum Alloy |
Stroke: |
60mm |
Air Inlet Thread: |
M16×1.5 |
Weight: |
8.3 KG |
Application: |
Schmitz Mercedes |
Color: |
Silver |
Bolt Center: |
76.2±0.3mm |
Surface Treatment: |
Electrophoretic Paint/Zinc Plating |
Bolt Thread: |
M16*1.5 |
Push Rod Length: |
265±5mm |
Piston Type: |
Single |
Clamp Angle: |
45 Degrees |
Type: |
Spring Brake |
Port Angle: |
90 Degrees |
Loading Port: |
Ningbo Port Or As Requested |
Working Pressure: |
800-1200kPa |
Stroke Length: |
60mm |
Sealing Material: |
Nitrile Rubber |
Oem No: |
4231061160 |

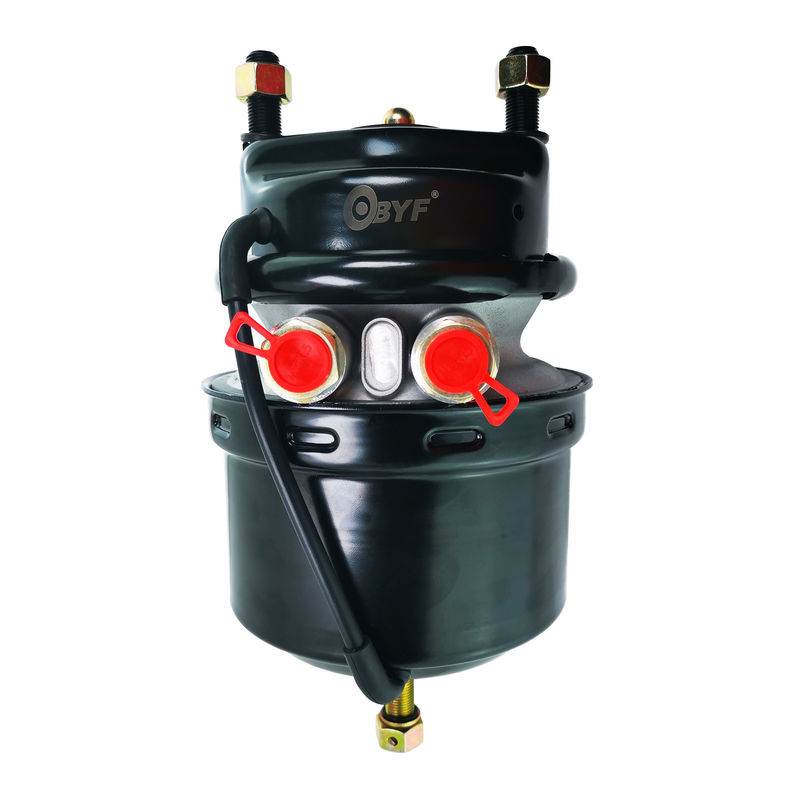

OEM QUALITY BRAKE CHAMBER T1624
T1624 Disc Brake Chamber. 60mm stroke.
| Working Pressure | 800KPa |
| Maximum Working Pressure | 1MPa |
| Pushrod Stroke | 0 - 60mm |
| Ambient Temperature | - 40 ~ +80°C |
| Surface Finish | 100hrs clear or yellow zinc plated, black powder coating |
| Service Time | ≥1,000,000 times |
| Life-time For Parking Chamber | ≥200,000 times |
Product Details
Drawing Details
Other Models For Your Choice
| T3030DD-L(SEALED) | T2424DCP | |
| T2430DD-L(SEALED) | T2024DCP | |
| T3030DD(SEALED) | T1624DCP | |
| T2430DD(SEALED) | T30 | |
| T3030DD | T24 | |
| T2430DD | T20 | |
| T2424DD | T16 | |
| T2024DD | T12 | |
| T1624DD | T9 | |
| T3030DP | T30-L | |
| T2430DP | T24-L | |
| T3024DP | T20-L | |
| T2424DP | T30-DISC | |
| T2024DP | T24-DISC | |
| T1624DP | T20-DISC | |
| T2430DP-DISC | T16-DISC | |
| T2424DP-DISC | T9/6200 | |
| T2024DP-DISC | T12/6200 | |
| T1624DP-DISC | T12/1200 |
Packing & Delivery
1. Brake chamber 2pcs/carton, 1x20GP: 1800pcs
2. Neutral packing, brand packing, corrugated box
3. Or as your request packing brake chamber
Fatigue Testing
Excellent Pre-sale Service
1. According to your specification request, provide the best price for you.
2. After you confirmed the specification and price, our engineers will draw a Official Drawing for you confirm.
3. After our Finance Department confirmed your deposit or Irrevocable L/C, we will start manufacture the products for you.
4. Update the progress of production to you in time, to help you know your order details progress.
5. After the product manufacture finished, if you need, we will arrange shipping for you.
With our professional skill, you just need to pick your products up at the destination place, and don’t need to worry about the shipping at all.
