German Type Trailer Suspension Parts ZG230-450 U-Bolt Top Arc Plate

Product Details

Place of Origin: China

Brand Name: BYF

Certification: IATF9001:2016 TS16949

Model Number: BPW

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: By The Requirement Of Customer

Delivery Time: 15 Days

Payment Terms: L/C, T/T, Western Union, MoneyGram, Cash

Supply Ability: 10000 Pieces Per Day

Get Best Price
Product Details
High Light:

ZG230-450 U-Bolt Top Arc Plate

,

German U-Bolt Top Arc Plate

,

ZG230-450

Type:
BPW German Type
Material:
ZG230-450
Color:
Black Or As Requested
Draft Angle:
No More Than 2°
Hardness:
HB 135-165
Sample:
Free Sample Can Be Offered
Size:
156×39×56mm
Weight:
1 KG
Technology:
Precision Casting
Type:
BPW German Type
Material:
ZG230-450
Color:
Black Or As Requested
Draft Angle:
No More Than 2°
Hardness:
HB 135-165
Sample:
Free Sample Can Be Offered
Size:
156×39×56mm
Weight:
1 KG
Technology:
Precision Casting
Product Description

U-Bolt Top Arc Plate | German Type Suspension Parts | ZG230-450 | Precision Casting



GERMAN TYPE U-BOLT TOP ARC PLATE



Type: BPW German Type Material: ZG230-450
Color: Black Or As Requested Draft Angle: No More Than 2°
Hardness: HB 135-165 Sample: Free Sample Can Be Offered
Size: 156×39×56mm Weight: 1 KG
Technology: Precision Casting





Technical Standard



1. The hardness of casting is HB 120-165;

2. Casting draft angle ≤ 2 °, unspecified fillet R2-R5;



3. Castings shall be free of cracks, air holes, slag inclusions, looseness and other defects;



4. If the flatness of the bottom surface cannot be guaranteed, it needs to be processed, and the processed surface is allowed to have black skin;



5. Antirust primer on the whole surface of castings.





Product Details

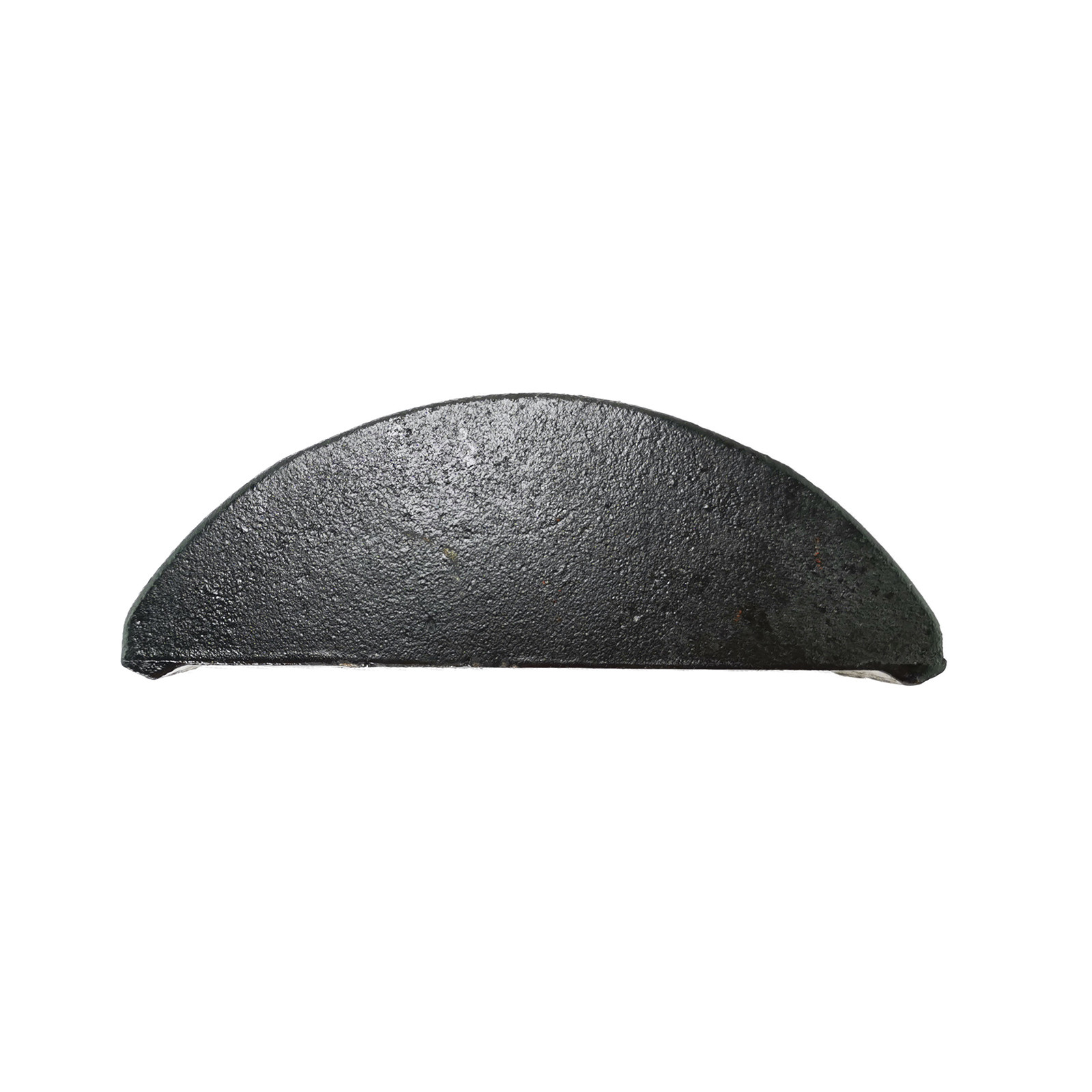

German Type Trailer Suspension Parts ZG230-450 U-Bolt Top Arc Plate 0

German Type Trailer Suspension Parts ZG230-450 U-Bolt Top Arc Plate 1 German Type Trailer Suspension Parts ZG230-450 U-Bolt Top Arc Plate 2

German Type Trailer Suspension Parts ZG230-450 U-Bolt Top Arc Plate 3 German Type Trailer Suspension Parts ZG230-450 U-Bolt Top Arc Plate 4



Drawing Details



German Type Trailer Suspension Parts ZG230-450 U-Bolt Top Arc Plate 5
