Double Diaphragm 9253020020 Type 3030 Brake Chamber

Product Details

Place of Origin: China

Brand Name: BYF

Certification: ISO9001:2015

Model Number: Type 3030

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: By the requirement of customer

Delivery Time: 15 Days

Payment Terms: L/C, T/T, Western Union, D/A

Supply Ability: 10000 Piece/Pieces Per Month

Get Best Price
Product Details
High Light:

Type 3030 Brake Chamber

,

9253020020 Type 3030 Brake Chamber

,

Double Diaphragm 9253020020

Brake Chamber Type:
3030
OEM NO:
9253020020
Material:
SPHC
Weight:
9.2 KG
Stroke:
64mm
Air Inlet Thread:
3/8"-NPTF Or M16×1.5
Bolt Thread:
5/8"-11UNC Or M16×1.5
Port Rod Thread:
5/8"-18UNF Or M16×1.5
Bolt Center:
120.7±0.3mm
Push Rod Length:
203±5mm
Connect Fork Pin Diameter:
12.5mm
Loading Port:
Ningbo Port Or As Requested
Color:
Black Or Yellow
Brake Chamber Type:
3030
OEM NO:
9253020020
Material:
SPHC
Weight:
9.2 KG
Stroke:
64mm
Air Inlet Thread:
3/8"-NPTF Or M16×1.5
Bolt Thread:
5/8"-11UNC Or M16×1.5
Port Rod Thread:
5/8"-18UNF Or M16×1.5
Bolt Center:
120.7±0.3mm
Push Rod Length:
203±5mm
Connect Fork Pin Diameter:
12.5mm
Loading Port:
Ningbo Port Or As Requested
Color:
Black Or Yellow
Product Description

Spring Brake Chamber Type 3030 | OEM 9253020020 | Double Diaphragm Chamber T3030 DD | For Axles With Drum Brakes



OEM QUALITY BRAKE CHAMBER T3030



Type 3030 Brake Chamber. Standard stroke, 2.50 inch stroke length. For port and bolt thread, both inch and metric are optional.



Working Pressure 800KPa
Maximum Working Pressure 1MPa
Pushrod Stroke 0 - 64mm
Ambient Temperature - 40 ~ +80°C
Surface Finish 100hrs clear or yellow zinc plated, black powder coating
Service Time ≥1,000,000 times
Life-time For Parking Chamber ≥200,000 times





Product Details

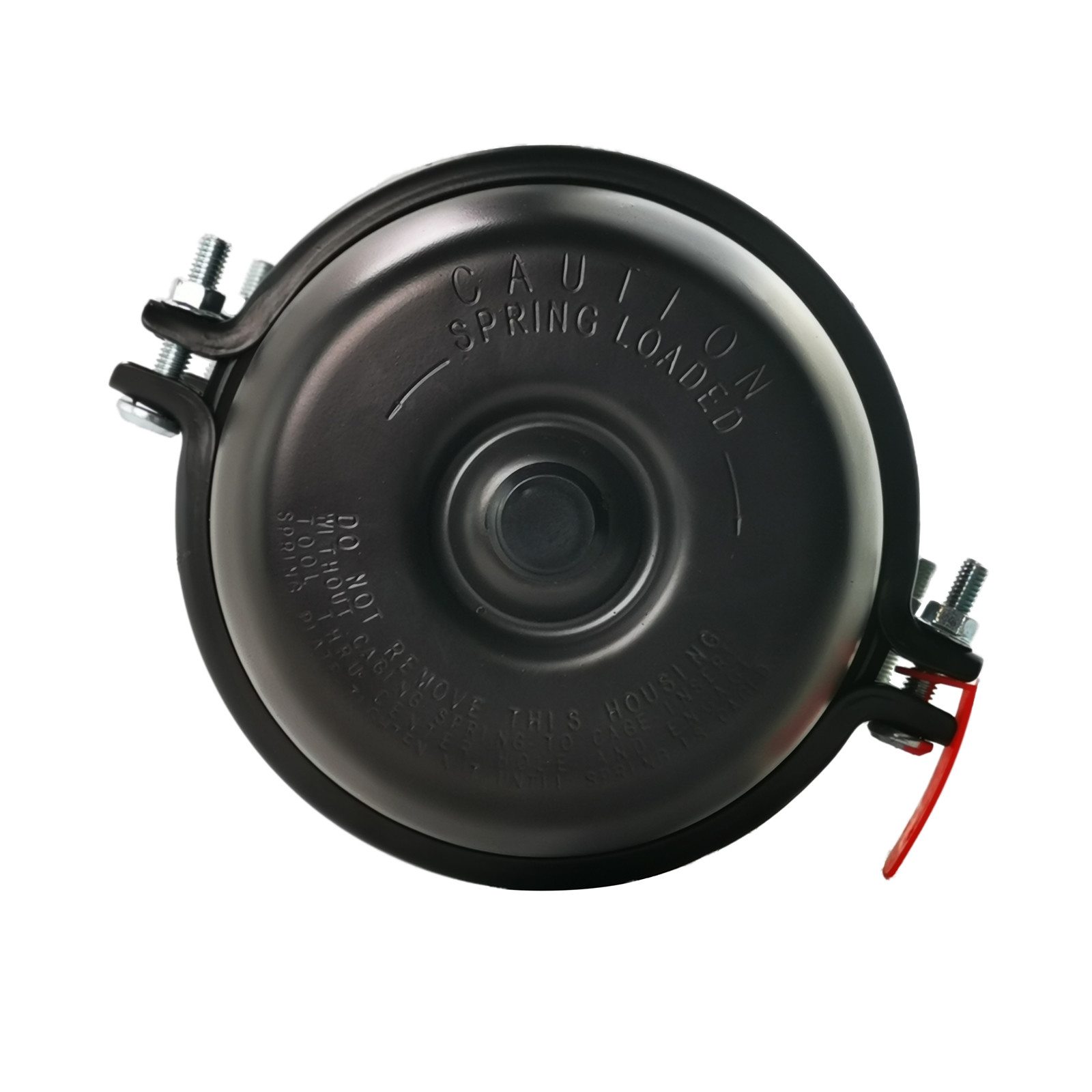

Double Diaphragm 9253020020 Type 3030 Brake Chamber 0 Double Diaphragm 9253020020 Type 3030 Brake Chamber 1

Double Diaphragm 9253020020 Type 3030 Brake Chamber 2 Double Diaphragm 9253020020 Type 3030 Brake Chamber 3

Double Diaphragm 9253020020 Type 3030 Brake Chamber 4 Double Diaphragm 9253020020 Type 3030 Brake Chamber 5





Drawing Details



Double Diaphragm 9253020020 Type 3030 Brake Chamber 6



Other Models For Your Choice



T3030DD-L(SEALED)   T2424DCP
T2430DD-L(SEALED)   T2024DCP
T3030DD(SEALED)   T1624DCP
T2430DD(SEALED)   T30
T3030DD   T24
T2430DD   T20
T2424DD   T16
T2024DD   T12
T1624DD   T9
T3030DP   T30-L
T2430DP   T24-L
T3024DP   T20-L
T2424DP   T30-DISC
T2024DP   T24-DISC
T1624DP   T20-DISC
T2430DP-DISC   T16-DISC
T2424DP-DISC   T9/6200
T2024DP-DISC   T12/6200
T1624DP-DISC   T12/1200




Packing & Delivery



1. Brake chamber 2pcs/carton, 1x20GP: 1800pcs



2. Neutral packing, brand packing, corrugated box



3. Or as your request packing brake chamber



Double Diaphragm 9253020020 Type 3030 Brake Chamber 7





Fatigue Testing







Excellent Pre-sale Service



1. According to your specification request, provide the best price for you.



2. After you confirmed the specification and price, our engineers will draw a Official Drawing for you confirm.



3. After our Finance Department confirmed your deposit or Irrevocable L/C, we will start manufacture the products for you.



4. Update the progress of production to you in time, to help you know your order details progress.



5. After the product manufacture finished, if you need, we will arrange shipping for you.



With our professional skill, you just need to pick your products up at the destination place, and don’t need to worry about the shipping at all.
