Product Details
Place of Origin: China
Brand Name: BYF
Certification: ISO9001:2015
Model Number: 4707QP
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: By The Requirement Of Customer
Delivery Time: 15 Days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Cash
Supply Ability: 6000 Piece/Pieces Per 8 Hours
Type: |
American Type Brake Shoe |
Material: |
Q235/Q345 |
Dimension: |
16.5''×7'' ( 420×180mm ) |
OEM NO.: |
MERITOR A19-3222-D-2006 |
Surface Treatment: |
E-Coating≥240 Hours Salty Spray Test |
BYF Drawing: |
BYF-Z-24 |
Color: |
Black Or As Required |
Welding Intersity: |
17-25 KN |
Qty/20ft Container: |
3,500-4,000 Pieces |
Weight: |
5.3 KG |
OEM Supply: |
Custom Design And Service Are Accepted |
Packing: |
By Pallet Or Plywood Box |
Certification: |
IATF 16949:2016 |
Loading Port: |
Ningbo Port Or As Required |
Type: |
American Type Brake Shoe |
Material: |
Q235/Q345 |
Dimension: |
16.5''×7'' ( 420×180mm ) |
OEM NO.: |
MERITOR A19-3222-D-2006 |
Surface Treatment: |
E-Coating≥240 Hours Salty Spray Test |
BYF Drawing: |
BYF-Z-24 |
Color: |
Black Or As Required |
Welding Intersity: |
17-25 KN |
Qty/20ft Container: |
3,500-4,000 Pieces |
Weight: |
5.3 KG |
OEM Supply: |
Custom Design And Service Are Accepted |
Packing: |
By Pallet Or Plywood Box |
Certification: |
IATF 16949:2016 |
Loading Port: |
Ningbo Port Or As Required |

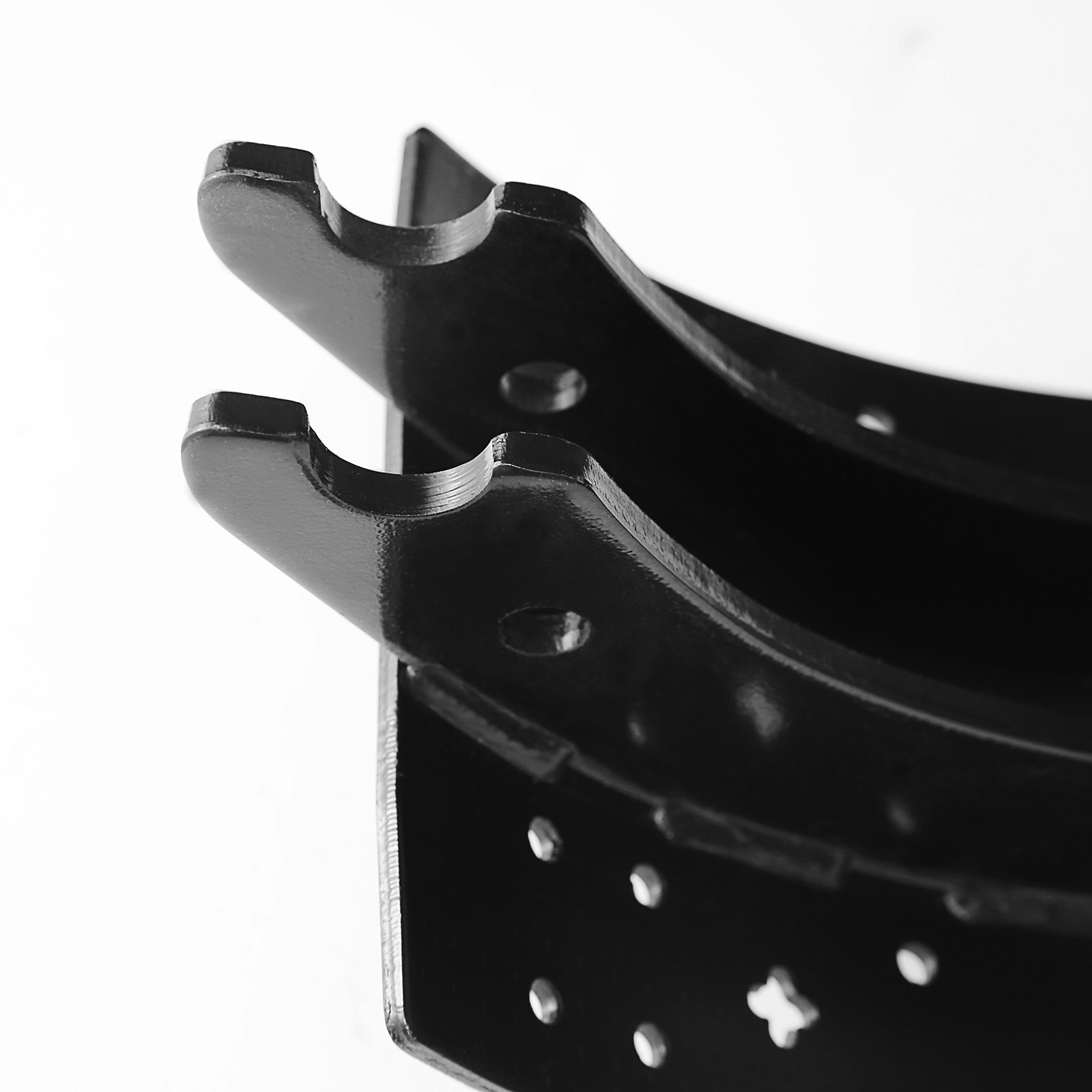

American Type Brake Shoe 4707QP | 16.5''×7'' ( 419×177.8mm ) | OEM MERITOR A19-3222-D-2006 | For Heavy Duty Semi Trailer
AMERICAN TYPE BRAKE SHOE 4707QP
What's advantages of our brake shoe?
1. OEM qualtity control to make sure that our products can give you 1 year warranty whatever any different road the trailer driving.
2. Pretty good matched with the lining, no need any more adjustment. Because it's surface flatness less than 0.03mm.
3. Strong welding strength. American standard from 17-22KN. The maximum welding intensity of ours reach to 29KN.
Because we use constant temperature cooling system while quenching.
4. Our engineers got more than 20 years experience in doing this industry. We can slove all problem you met before.
5. Strictly quality control. Any complain from you will be quickly treated, and the solution would be given to you inside of 3 days.
How long would be needed to your order?
Our capacity of production one simple type brake shoe is 4,000-6,000 pcs/8 hours.
Product Details
Type | American Type Brake Shoe |
OEM NO. | MERITOR A19-3222-D-2006 |
Material | Q235/Q345 |
Dimension | 16.5''×7'' ( 420×180mm ) |
Surface Treatment | E-Coating≥240 Hours Salty Spray Test |
Welding Intersity | 17-25 KN |
Weight | 5.3 KG |
BYF Drawing | BYF-Z-24 |
Color | Black Or As Required |
OEM Supply | Custom Design And Service Are Accepted |
Certification | IATF 16949:2016 |
Qty/20ft Container | 3,500-4,000 Pieces |
Packing | By Pallet Or Plywood Box |
Loading Port | Ningbo Port Or As Required |
Drawing Detasils
Other Models Are Also Available
FMSI NO. | Description | OEM NO. | ||
4720QP | E-10854 | MERITOR Q-Plus series 16 1/2"X5" | MERITOR A-3222-Z-2288 | Available |
4707 | E-5503 | MERITORQ-Plus series 16 1/2"X7" | MERITOR A-3222-D-2006 | Available |
4718 | E-10850 | MERITORQ-Plus series 16 1/2"X8" | MERITOR A-3222-J-2272 | Available |
4711 | E-10844 | MERITOR Q-Plus series 16 1/2"X8 5/8" | MERITOR A-3222-K-2169 | Available |
Model | OEM NO. | Model | OEM NO. | |
BPW180 New | 05.091.46.17.0 | 4551 | Supply to FUWA 16T | |
BPW200 New | 05.091.27.83.0 | 4551P | MERITOR A-3222-L-1572 | |
BPW220 New | 05.091.28.29.0 | 4551Q | MERITOR A-3222-T-1346 | |
BPW360 New | 05.091.19.22.1 | 4702QP | MERITOR A-3222-M-2223 | |
BPW3020 New | 05.091.14.80.0 | 4703QP | MERITOR A3222-D-2110 | |
BPW180 Old | 05.091.26.64.2 | 4704QP | MERITOR A3222-E-2111 | |
BPW200 Old | 05.091.27.54.2 | 4705QP | MERITOR A3222-F-2112 | |
BPW220 Old | 05.091.28.11.2 | 4706QP | MERITOR A-3222-G-2113 | |
BPW360 Old | 05.091.19.07.0 | 4707QP | 152.24.724 A19-3222-D-2006 | |
BPW3020 Old | 05.091.14.46.0 | 4709ES-2 | EATON 819707 R4709G2 | |
SAF180 New | 2.056.0120.00 | 4710QP | MERITOR A-3222-A-2159 | |
SAF200 New | 2.056.0121.00 | 4711QP | MERITOR A-3222-K-2169 | |
SAF180 Old | 3.054.0052.00 | 4715QP | MERITOR A-3222-P-2200 | |
SAF200 Old | 3.054.0053.00 | 4717ES | R700018 | |
SAF-SK9 | 3.054.0120.00 | 4718QP | MERITOR A-3222-J-2272 | |
SAF-SK11 | 3.054.0120.00 | 4719ES-2 | EATON 819705 | |
BENZ-140 | 620.420.01.19 | 4720QP | MERITOR A-3222-Z-2288 | |
BENZ-160 | 393.420.07.19 | 4725ES-2 | EATON 819706 | |
BENZ-160 | 620.420.00.19 | 4726ES-2 | EATON 819708 | |
BENZ-180 | 389.420.61.19 | 4729ES-2 | EATON 974584 | |
BENZ-180 | 620.420.03.19 | 4223E | EATON 805677 | |
BENZ-220 | 305.420.07.19 | 4524P | MERITOR A-3722-D-82 | |
BENZ-220 | 620.420.05.19 | 4524Q | MERITOR A-3222-E-1383 | |
New 125-R/L | 3095193 | 4524QR | MERITOR A-3222-J-1440 | |
New 150-R/L | 3095194 | 4536 | DANA M12WS122X | |
New 175-R/L | 3095195 | 4591 | DANA M12WS127X | |
New 200-R/L | 3095196 | 4591PQ | R700031 | |
New 225-R/L | 3095197 | 4591SF | R704591 | |
Old 125-R/L | 3090073 | 4591SA | EATON 820173 | |
Old 150-R/L | 3090074 | 4592A | MERITOR A1-3722-J-686 | |
Old 175-R/L | 3090075 | 4592 | DANA M12WS148X | |
Old 200-R/L | 3090076 | 4607-Cast | DANA M12WS102 | |
Old 225-R/L | 3090077 | 4649 | FRUEHAUF ACD-2227-1 | |
MAN 160 | 81502016098 | 4644Q | MERITOR A-3222-B-1510 | |
MAN 180 | 81502016099 | 4670Q | MERITOR A-3222-S-1527 | |
MAN 220 | 81502016114 | 4674E | EATON 805682 | |
4544-Cast | DANA M12WS108 | 4692 | R700007 | |
4514P | MERITOR A-3722-L-64 | 4311E | EATON 805442 EATON 805460 | |
4514Q | MERITOR A-3222-C-1381 | 4317E | R700023 | |
4514QR | MERITOR A-3222-V-1348 | 1443E | EATON 807685 R700017 | |
4515E | 150.25.412 | 1307T | MERITOR A-3222-K-1103 | |
4515P | MERITOR A-3722-N-66 | 1308T | MERITOR A-3222-F-1072 | |
4515Q | 152.05.533 A91-3222-S-1293 | 1308Q | MERITOR A-3222-F-1982 | |
4515 | Supply to FUWA 13T | 1308E | EATON 1005840 | |
4516 | 152.06.227 | 5030-178 SMB178 | ||
4515XEM | FRUEHAUF ACF-3379-1 | 07-005 SMB | ||
4551 XEM-L | FRUEHAUF ACF-3380-1 | 5030-203 SMB203 | ||
4551 XEM-R | FRUEHAUF ACF-3380-2 | 61540 | ||
4551E | 152.00.007 | T8235 | ||
4551F | 152.05.191 | …… |
Quality Inspection Process
Packing & Delivery
Polyethylene foamed film will be use between each layer to protect the surface and edge.
Whole body of the pallet will be packaged by PE film in order to avoiding water go inside, and prevent pallet crash with each other.
Excellent Pre-sale Service
1. According to your specification request, provide the best price for you.
2. After you confirmed the specification and price, our engineers will draw a Official Drawing for you confirm.
3. After our Finance Department confirmed your deposit or Irrevocable L/C, we will start manufacture the products for you.
4. Update the progress of production to you in time, to help you know your order details progress.
5. After the product manufacture finished, if you need, we will arrange shipping for you.
With our professional skill, you just need to pick your products up at the destination place, and don’t need to worry about the shipping at all.
