Place of Origin: | China |
---|---|
Brand Name: | BYF |
Certification: | ISO9001:2015 |
Model Number: | Type 9 |
Minimum Order Quantity: | Negotiable |
Price: | Negotiable |
Packaging Details: | By The Requirement Of Customer |
Delivery Time: | 15 Days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram, Cash |
Supply Ability: | 10000 Piece/Pieces Per Month |
Brake Chamber Type: | 9 | OEM NO: | KN36009/4231029000 |
---|---|---|---|
Material: | SPHC | Weight: | 2.50 KG |
Stroke: | 57mm | Air Inlet Thread: | 3/8"-NPTF Or M16×1.5 |
Bolt Thread: | 7/16"-14UNC Or M12×1.5 | Port Rod Thread: | 1/2"-20UNF Or M12×1.5 |
Bolt Center: | 76.2mm | Push Rod Length: | 190mm |
Loading Port: | Ningbo Port Or As Requested | Color: | Black Or Yellow |
High Light: | 4231029000 Type 9 Brake Chamber,KN36009 Type 9 Brake Chamber |

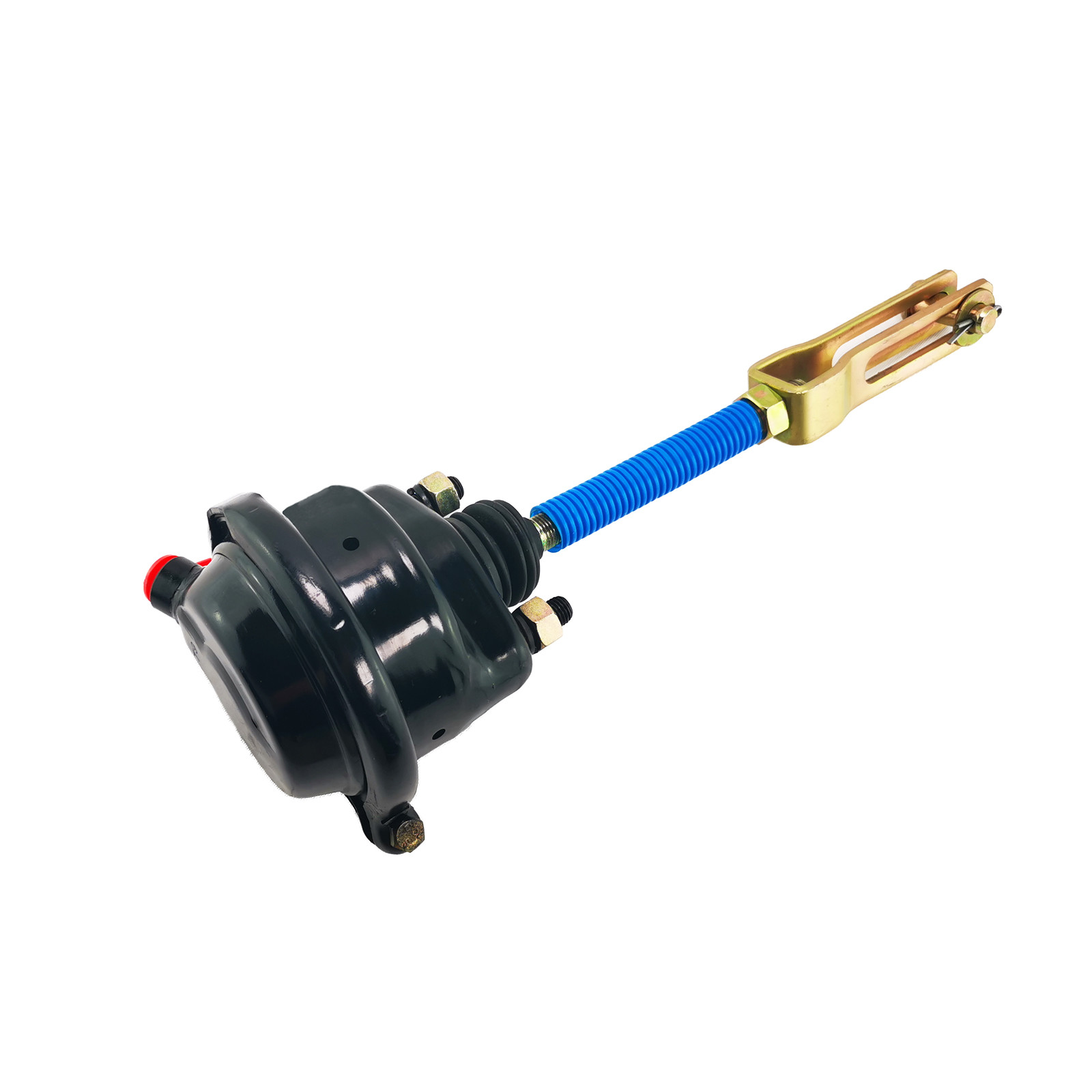

Service Brake Chamber Type 9 | OEM 4231029000 | Single Diaphragm Air Chamber T9 | For Axles With Drum Brakes
OEM QUALITY BRAKE CHAMBER T9
Type 9 brake service chamber. 3/8-18 NPTF inlet ports, 2.25 inch service stroke. For port and bolt thread, both inch and metric are optional.
Working Pressure | 800KPa |
Maximum Working Pressure | 1MPa |
Pushrod Stroke | 0 - 57mm |
Ambient Temperature | - 40 ~ +80°C |
Surface Finish | 100hrs clear or yellow zinc plated, black powder coating |
Service Time | ≥1,000,000 times |
Life-time For Parking Chamber | ≥200,000 times |
Video Proview
Product Details
Drawing Details
Other Models For Your Choice
T3030DD-L(SEALED) | T2424DCP | |
T2430DD-L(SEALED) | T2024DCP | |
T3030DD(SEALED) | T1624DCP | |
T2430DD(SEALED) | T30 | |
T3030DD | T24 | |
T2430DD | T20 | |
T2424DD | T16 | |
T2024DD | T12 | |
T1624DD | T9 | |
T3030DP | T30-L | |
T2430DP | T24-L | |
T3024DP | T20-L | |
T2424DP | T30-DISC | |
T2024DP | T24-DISC | |
T1624DP | T20-DISC | |
T2430DP-DISC | T16-DISC | |
T2424DP-DISC | T9/6200 | |
T2024DP-DISC | T12/6200 | |
T1624DP-DISC | T12/1200 |
Packing & Delivery
1. Brake chamber 2pcs/carton, 1x20GP: 1800pcs
2. Neutral packing, brand packing, corrugated box
3. Or as your request packing brake chamber
Fatigue Testing
Excellent Pre-sale Service
1. According to your specification request, provide the best price for you.
2. After you confirmed the specification and price, our engineers will draw a Official Drawing for you confirm.
3. After our Finance Department confirmed your deposit or Irrevocable L/C, we will start manufacture the products for you.
4. Update the progress of production to you in time, to help you know your order details progress.
5. After the product manufacture finished, if you need, we will arrange shipping for you.
With our professional skill, you just need to pick your products up at the destination place, and don’t need to worry about the shipping at all.
